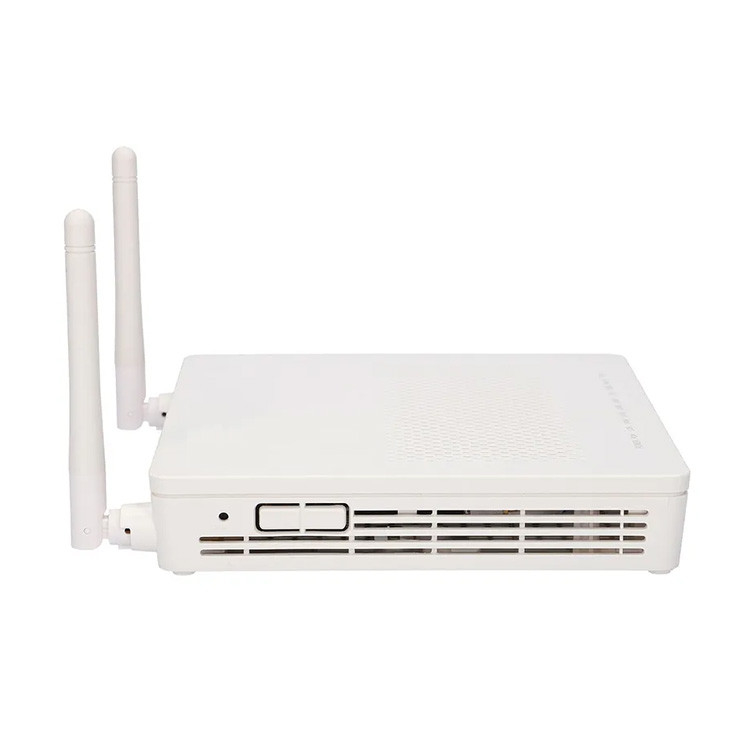

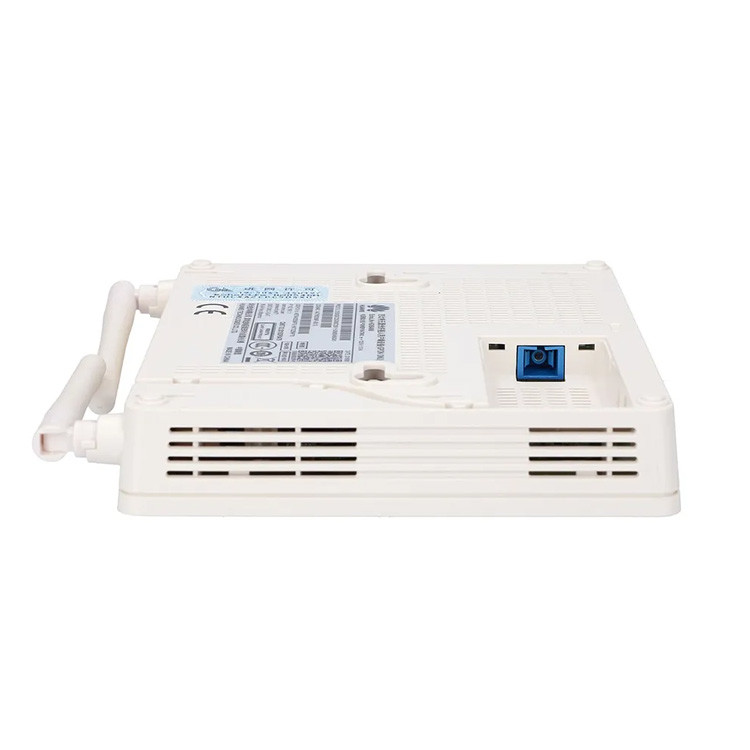

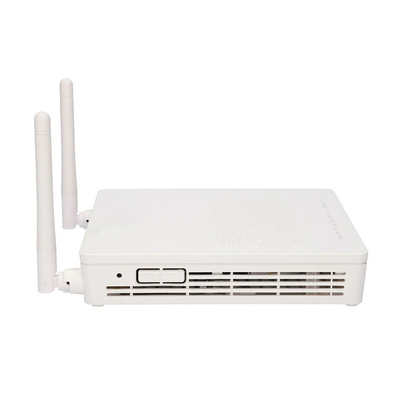

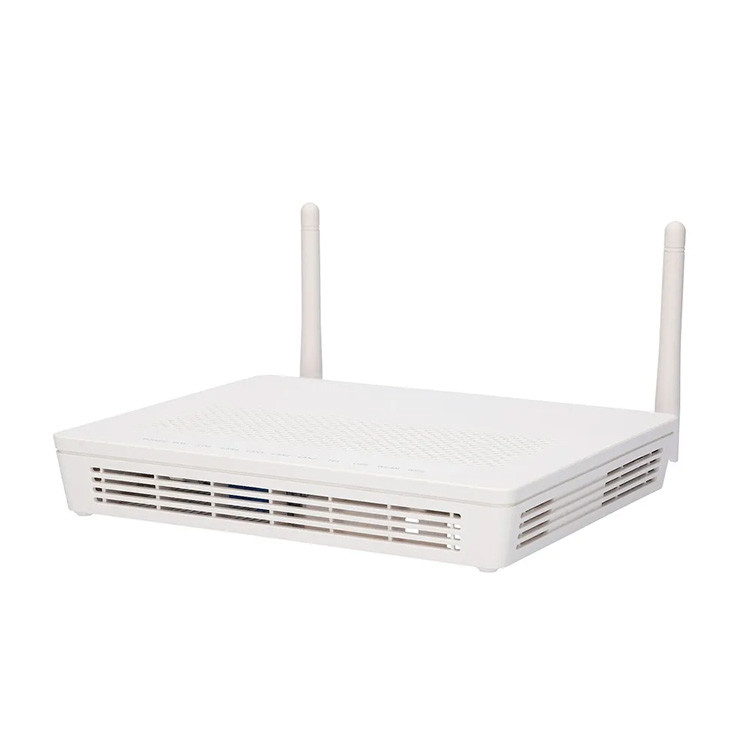

Brand New 1GE+3FE WIFI HG8546M gigabit 5dbi gpon onu 8546M xpon onu

Name: Brand New 1GE+3FE WIFI HG8546M gigabit 5dbi gpon onu 8546M xpon onu
Brand: HONGKING
SKU: HG8546M
Price: 25 USD
Availability: InStock
Rating: 4.9 (127 reviews)

Cantidad de orden mínima :	100Pcs	Precio :	USD25/PC
Detalles de empaquetado :	el 15155cm	Tiempo de entrega :	2-3 semanas
Condiciones de pago :	L/C, T/T	Capacidad de la fuente :	100000 por mes

Lugar de origen:	Shenzhen	Nombre de la marca:	HONGKING
Certificación:	CE ROES	Número de modelo:	HG8546M

Información detallada
WIFI6:	WIFI5 WIFI6 5G	BANAD:	BANDA DUAL
BAND1:	2.4G/5G	APC UPC:	APC UPC
Logotipo:	Modificado para requisitos particulares	Puerto:	5 PUERTOS
GPON:	GPON/Epon

Descripción de producto

Best price Original Huawei English Version ONT HG8546M 4LAN 1voice WIFI USB Antenna ONU 8546m Gpon ONT

Model	Configuration					Dimension/pcs
	LAN	Telephone	Wifi	PPPOE	Firmware
HG8546M	4GE	1POTS	2.4/5G WIFI6	YES	English	17613828
Remarks	Power plug:EU,AU,AM,UK etc
	Noted: with Chinese manual
	Optional: 4GE+1TEL WIFI6 2.4G/5G

Features:

1 .Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance

Hardware Specifications

PON Interface	Interface Type	SC/PC, CLASS B+
	Rate	Uplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface	110/100/1000BASE-T;110/100BASE-T;1*RF interface
Size (Mm)	167(L)×118(W)×30(H)
Maximum Power Consumption	<8W
Weight	120g
Operating Environment	Temperature: -10°C ~ 55°C
	Humidity: 5% ~ 95% (no condensation)
Power Supply	External Power Adapter 12V/1A
Power Adapter Input	100-240V AC, 50/60Hz
Power Interface Size	metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module	External dual antenna, antenna gain 5db, antenna power 16~21dbm
	Support 2.4GHz, 300M transmission rate

Product Highlights

1.Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not
required.

2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup
emulation initiated by the NMS.

3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.

5.Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single
chip integrates with PON, voice, gateway and LSW modules.
